Flood Defender Wall

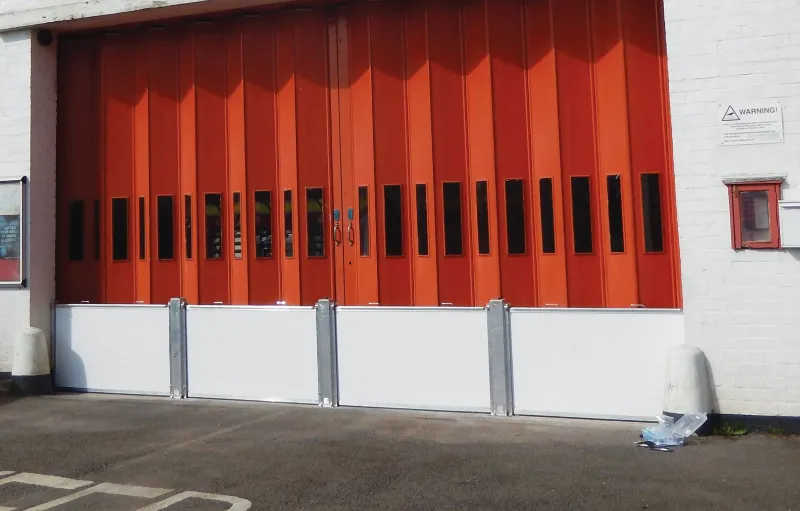

Specially designed extrusions provide optimal sealing for reliable flood mitigation. This system is easily deployed and is lightweight, but robust. It can span any width, using a series of demountable posts, and the side rails have the option of being powder coated to match the exterior.

Suitable for coastal, freshwater and brackish water conditions.
Specialist fixtures to ensure parts have a long life span.
Suitable for disabled access.
Integrated ID tags on each barrier for easy identification during deployment.

Applications	Suitable for use in industrial, commercial and residential settings Building entrances including shop frontages Garages and loading bays Car park entrances Full ringed protection around high value assets Both coastal frontages and river bank protection

Sizing	Can span any width, using a series of demountable posts Can be manufactured up to a maximum protection height of 1.2m (subject to survey)

Threshold	The defender wall uses a reversed C channel into the ground. This provides optimal protection as the barrier is sealed against a level threshold The dead level threshold makes it ideal for disabled access, prevents tripping and allows vehicles to drive over the threshold without causing damage

Maintenance	Tailored maintenance packages are available dependent on usage

Construction	Barrier (Flood Defender Barrier) – Lightweight engineered flood board. Each single board has a specialist aluminium channel extruded for strength and top handles for ease of use. The seals are extremely efficient semi-open EPDM rubber seals which form an effective barrier Socket/base plate – Manufactured from galvanised mild steel. The sockets come with two options dependent on ground conditions, circular for sites with good ground conditions and rectangular for areas with poor ground conditions. The socket is cast into the floor below ground leaving only the flip lid visible. The socket acts as an anchor for the post to transfer any impact loadings into the ground Demountable posts – Manufactured from aluminium, the posts sit in a socket that is cast in to floor level. The post is demountable so when the Flood Defender Wall is not in use it is stored in a nearby location. The post is designed to easily bolt to the sockets. It’s also specially design to allow the barriers to easy slot into position. The posts can be powder coated on client’s request Connections – All fixings used on the barrier, posts and sockets are stainless steel, so they are long lasting and hardwearing Tools – Tools required for deployment are supplied with the Defender Wall upon initial installation

Construction

Barrier (Flood Defender Barrier) – Lightweight engineered flood board. Each single board has a specialist aluminium channel extruded for strength and top handles for ease of use. The seals are extremely efficient semi-open EPDM rubber seals which form an effective barrier
Socket/base plate – Manufactured from galvanised mild steel. The sockets come with two options dependent on ground conditions, circular for sites with good ground conditions and rectangular for areas with poor ground conditions. The socket is cast into the floor below ground leaving only the flip lid visible. The socket acts as an anchor for the post to transfer any impact loadings into the ground
Demountable posts – Manufactured from aluminium, the posts sit in a socket that is cast in to floor level. The post is demountable so when the Flood Defender Wall is not in use it is stored in a nearby location. The post is designed to easily bolt to the sockets. It’s also specially design to allow the barriers to easy slot into position. The posts can be powder coated on client’s request
Connections – All fixings used on the barrier, posts and sockets are stainless steel, so they are long lasting and hardwearing
Tools – Tools required for deployment are supplied with the Defender Wall upon initial installation

Related Case Studies

Lidl, Oban, Scotland

Tadcaster Medical Centre

Shop

Flood Defender Wall

Related Documents

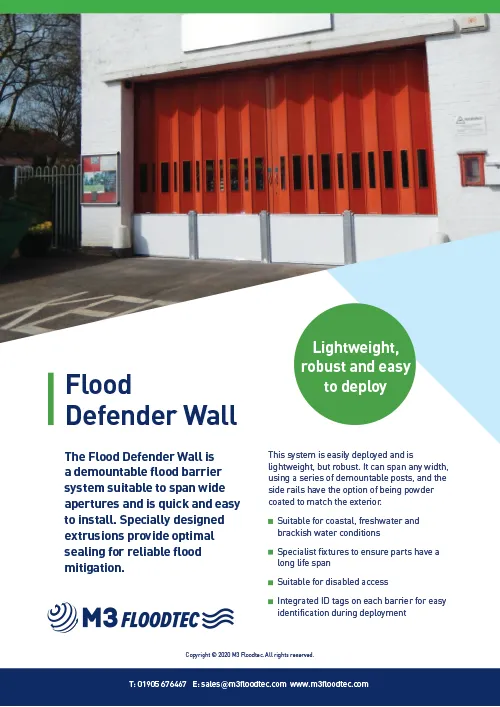

Wall Technical Brochure pdf
