Steel Flood & Security Door

Manufactured in the UK, the Steel Flood & Security Door is designed to offer secure protection against flood and unauthorised entry.

SKU: M3SFSD Category: Flood Resilient Doors

Get a Quote

Description
Additional information

Highly versatile and cost effective, it is the ideal solution for unmanned or remote locations, such as utility sites, where high security levels are required.

Provides 24/7 protection
Holds two Kitemark certifications to PAS 1188-1:2014
Can be designed and manufactured for use on both single and double doors (outward opening) to a variety of widths and heights
Acts as a standard steel door in all other aspects including security and escape
Can incorporate glazed or louvre panels as well as fixed or removable overhead steel panels or overhead transom doors
Manufactured from 1.5mm galvanised steel, zintec treated to prevent corrosion

Applications	The Nemef Z1749/09/42 multi point lock is a sash lock with two dead bolts, incorporating top and bottom inter locking rods which throw the top and bottom deadlocks simultaneously when the key is operated. The Exidor 703B/30 is a CE marked locking system, three point panic bolt for outward opening single door only. The unit is operated by a forward thrust of the crossbar to give a speedy exit in panic situations. Surface mounted anti thrust latch bolt and bottom bolt to prevent physical attack. The Exidor 710 is supplied either with or without cylinder, and has the advantage that a high security master keyed 45mm half Euro profile cylinder can be used. Suitable for use with the Exidor 700 series, this OAD is manufactured from stainless steel which helps prevent force and drill attack, and incorporates cylinder protection to prevent manipulation. Great for high security applications.

Applications

The Nemef Z1749/09/42 multi point lock is a sash lock with two dead bolts, incorporating top and
bottom inter locking rods which throw the top and bottom deadlocks simultaneously when the key
is operated.

The Exidor 703B/30 is a CE marked locking system, three point panic bolt for outward opening
single door only. The unit is operated by a forward thrust of the crossbar to give a speedy exit
in panic situations. Surface mounted anti thrust latch bolt and bottom bolt to prevent physical
attack.

The Exidor 710 is supplied either with or without cylinder, and has the advantage that a high
security master keyed 45mm half Euro profile cylinder can be used. Suitable for use with the
Exidor 700 series, this OAD is manufactured from stainless steel which helps prevent force and
drill attack, and incorporates cylinder protection to prevent manipulation. Great for high
security applications.

Handles	The handles are manufactured from stainless steel.

Seals	The door seals are co-extruded with EPDM onto steel, which provides a reinforced seal.

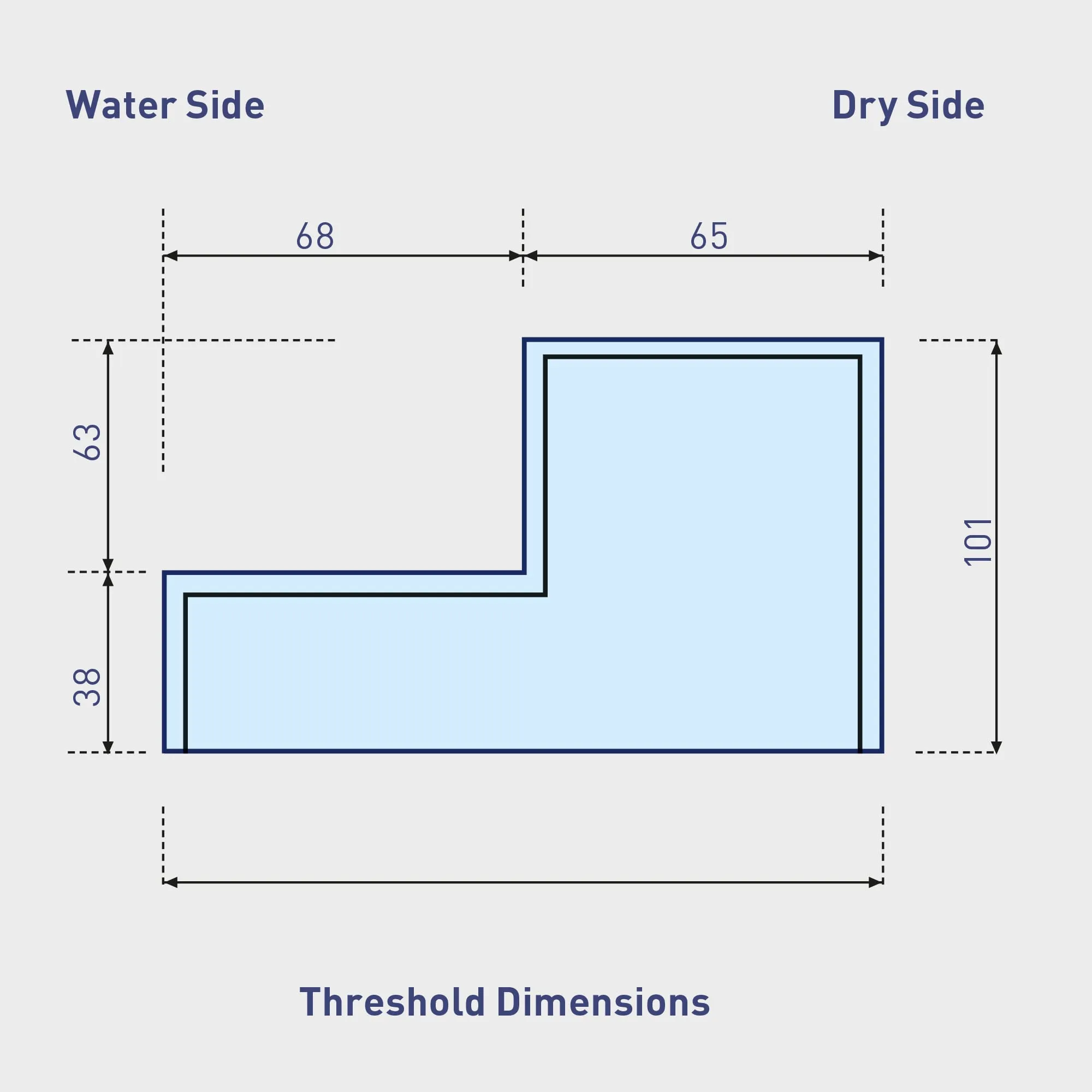

Threshold	The flood door has a small threshold which is required in order to create the seal. With a standard un-sunken door, the threshold is 101mm (shown right). To reduce the effect, the threshold can be reduced to 63mm on a door cast up to finished floor level, or if it is chased into the ground.

Threshold

The flood door has a small threshold which is required in order to create the seal.
